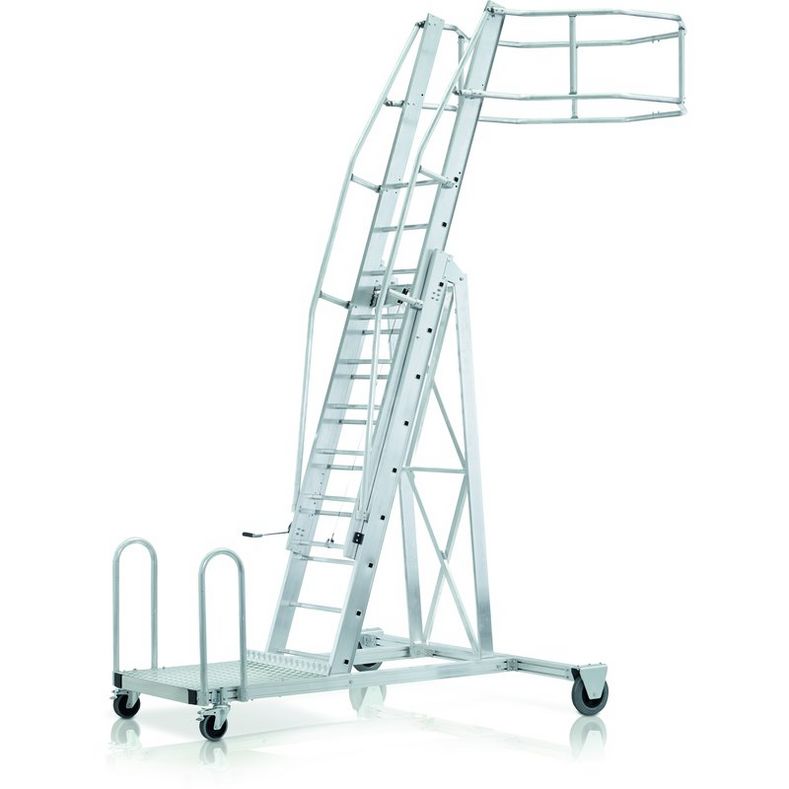

Mobile Safety Ladder

Category:

The operator can work on the dome whilst being safe if you use the safety Ladder from haagh Protection!

For a quotation or more information, please contact us via info@haagh-protection.com or our contactform

Description

Haagh Protection developed a mobile safety ladders pefectly adapted to working conditions on the dome of tankers or tankers and containers.

Downfall from height is the second cause of mortal accidents (the first one being traffic accidents). This risk is even more important for operators working on the top dome of vehicles, like interventions on trucks, containers or tankers. A downfall risk occurs when workers are required to get on top of tankers or containers. Two important things must be assured: operator safety and sufficient vehicle access.

Operating principle

The safety mobile ladder allows the operator a quick access onto the top of tankers or containers whilst being completely safe. It is easy to move thanks to its patented draft bar system. The corbelling guarantees safety for the user working on the top of the tank. The system also acts as a safeguard as it prohibits the access to the top of the tank when the base of the structure is not blocked. The mobile safety ladder is certified TÜV SÜD and NORISKO-DEKRA.

Some Features:

  • Working Height: Between 2650mm and 4500 mm

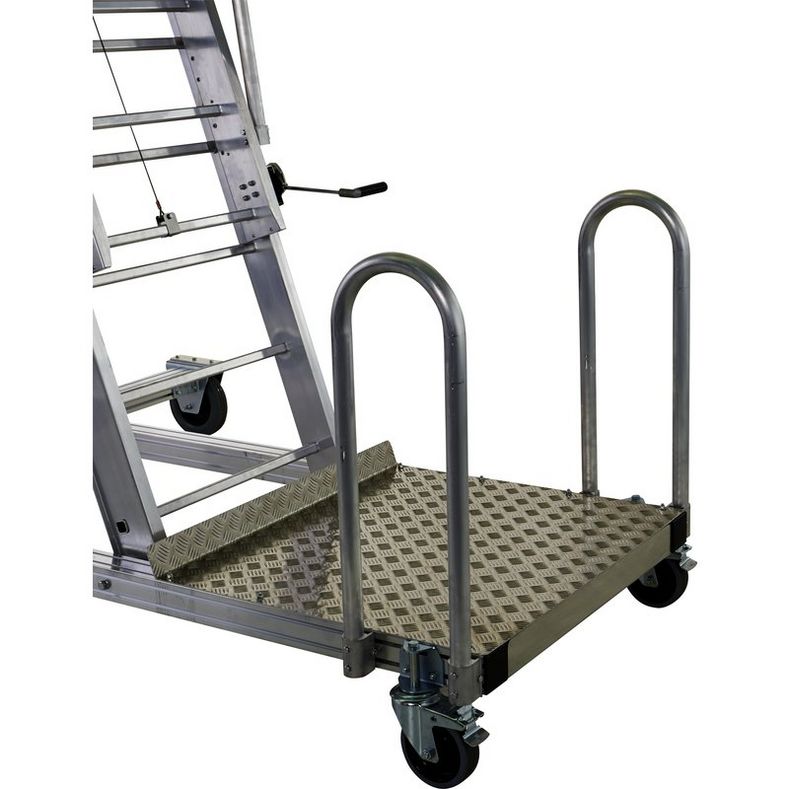

  • Adjustable Plinth
  • Easy to Transport
  • Stability Guaranteed
  • Complete safe working space, which is sealed off
  • Long Life span
  • Constructed out of high end materials



2 differtent types available:

echelle-citerneechelle-container

Additional information

Weight 400 kg
