VARIOGATE® 30 Safety Pallet gate System Guillotine type

SKU: 730.30.99 oude SKU: Category: Tags: , ,

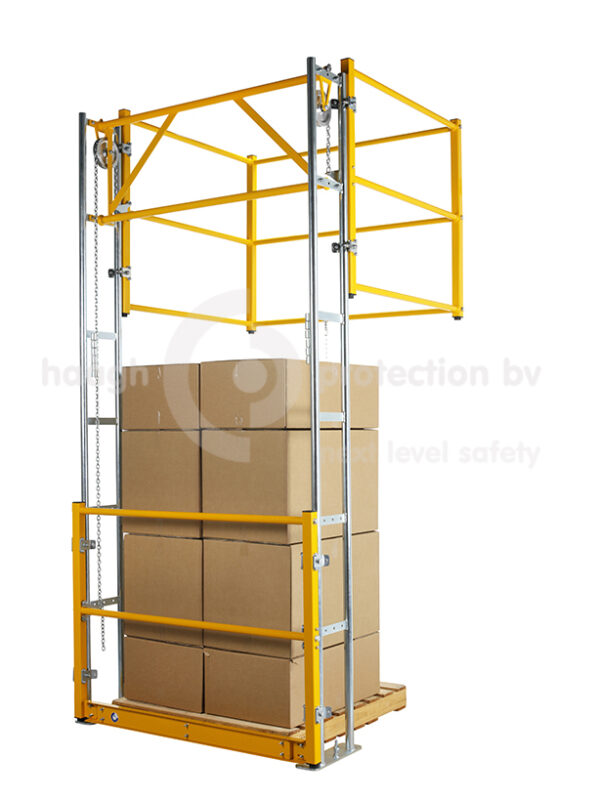

VARIOGATE® 30 Safety pallet gate system

Since 1981 Haagh Protection offers various solutions for securing mezzanine floors at height for placing loads and pallets.

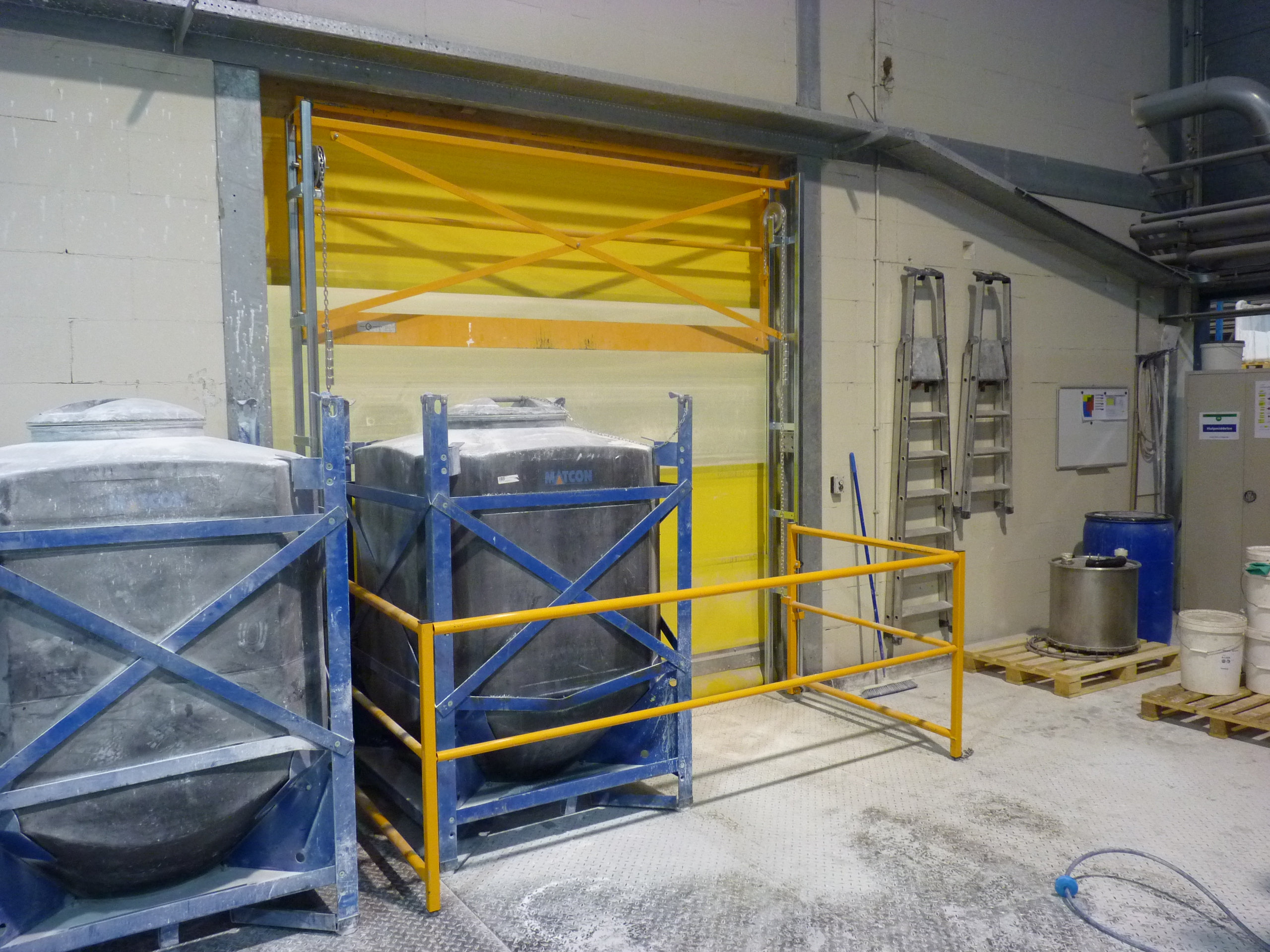

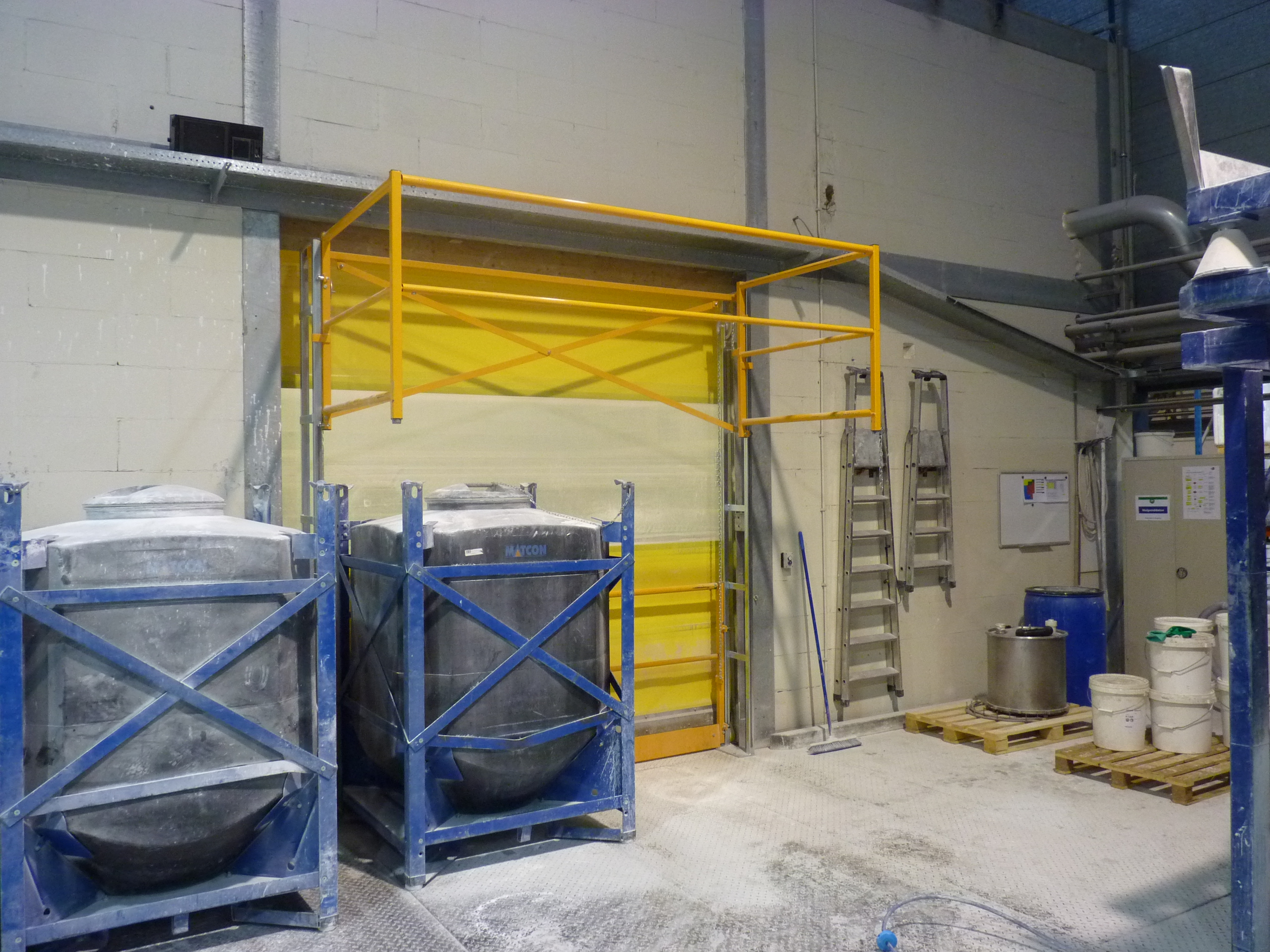

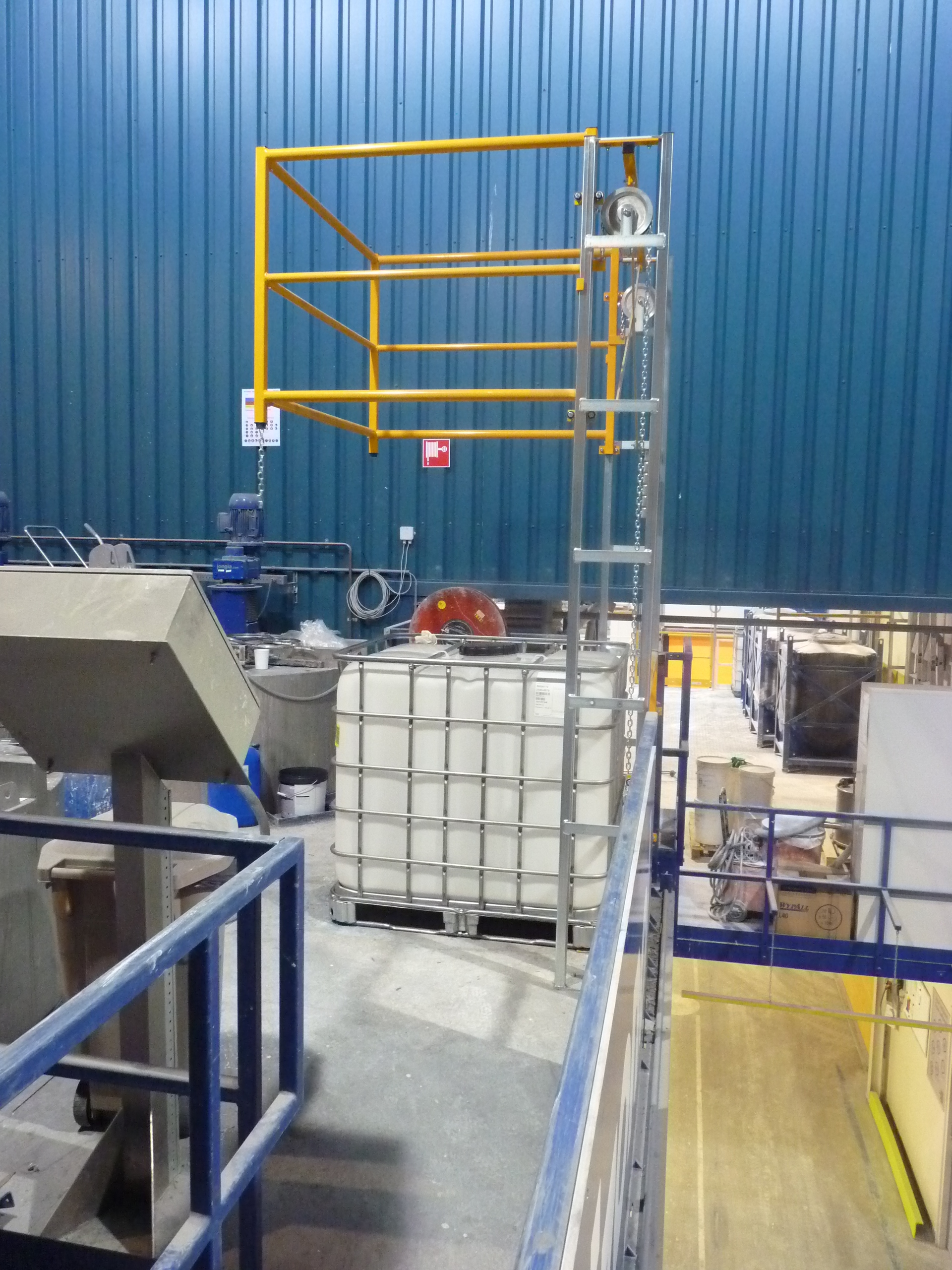

The new type of guillotine-device VARIOGATE® 30 provides the optimal solution for set-up conditions at a pallet location with a limited space. This problem occurs when there is insufficient space for a normal, pivoting safety pallet gate or when a lateral displacement of the load occurs. Suitable for a maximum load / pallet height of 2.100 mm and a maximum load / pallet depth of 1.400 mm.

The Safety Cantilever gate is a device that is intended to protect people who are in the vicinity of plug points in floors. It also prevents that goods fall down and cause physical injury or damage to people or goods on the ground floor.


Standard outersizes available: 1.600mm-2.000mm- 2.400mm and 3.000mm. Deliverable from stock and TUV certified untill a width of 2.400mm.

With the recent improvements we made a better stability and used stronger materials and new features, such as a retractable kickplate so that more amount of the load itself can be placed on the floor. We can also provide tailor-made solutions with this type of equipment and there is even a version available for the Vario 30 with a retractable backfence so we can exploite extra space at the plug point. Based on the concept of the guillotine, Haagh Protection also realizes solutions in areas with limited height and depth is available for the loads.

Customization is perfectly possible!

Additional information

Weight 140 kg
Dimensions N/A
Width safety gate

1600mm, 2000mm, 2400mm, 3000mm
